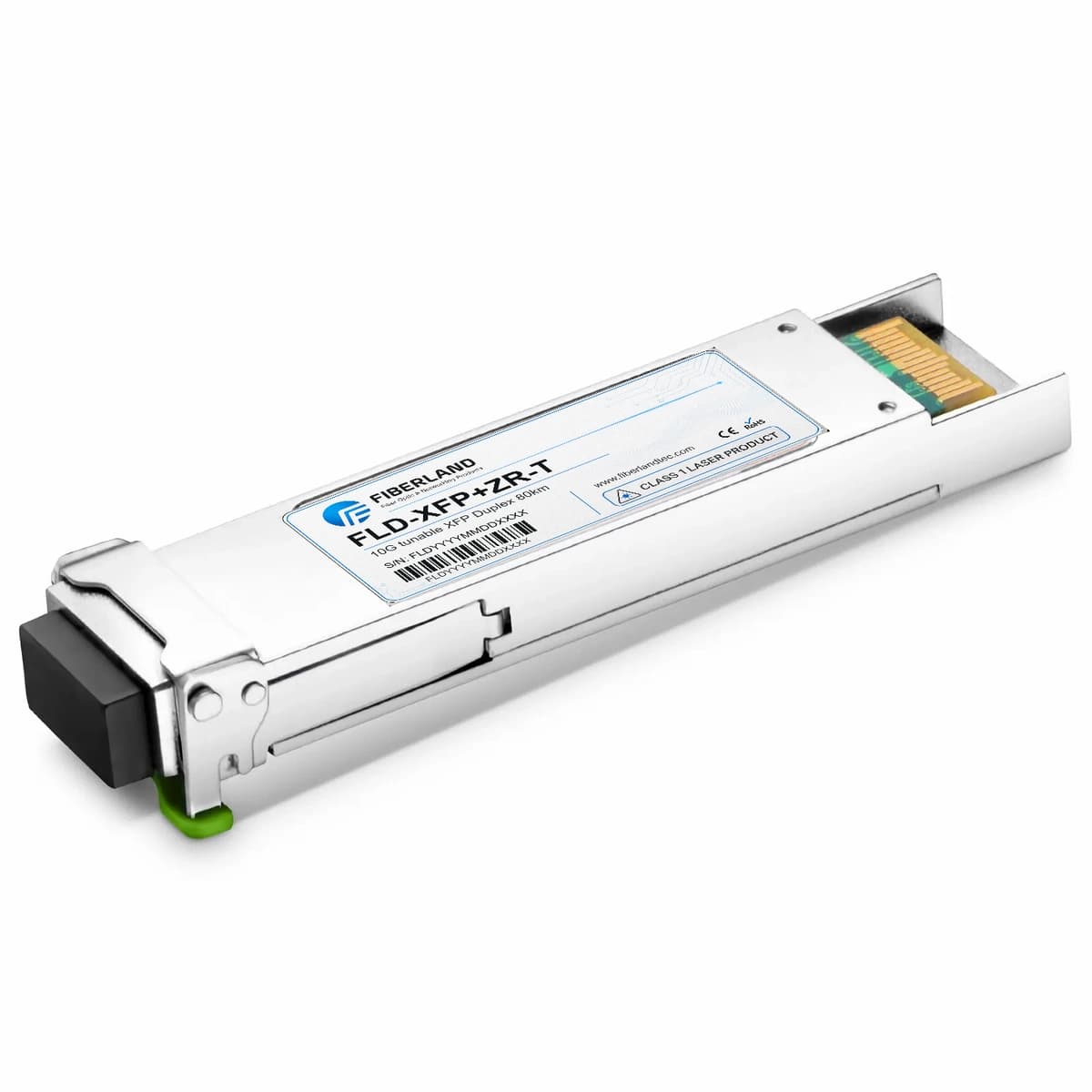

10G XFP DWDM Tunable Optical Transceiver for DCI and Optical Transport - Compatible XFP DWDM Tunable Transceiver - AstraPhoton
10G tunable XFP Duplex 80km- AstraPhoton model
- APT10XDTSYS
- Catalogue reference
- XFP+ZR-T
- Data rate
- 10G
- Wavelength
- Tunable
- Reach
- 80KM
- Form factor
- Tunable XFP
Key specifications
Original part-number references
These references compare optical specifications. Confirm the host device, firmware and coding profile before deployment.
| Brand | Original part number | Model reference | Optical specification reference | Next step |
|---|---|---|---|---|
| CISCO | DWDM-XFP-C | APT10XDTSYS | 10G tunable DWDM XFP transceiver, 80-channel C-band tuning on a 50 GHz ITU grid, 80 km over G.652 single-mode fiber, dual LC/PC, with digital optical monitoring. Cisco 10-Gigabit Ethernet DWDM XFP Transceiver Modules Data SheetReviewed 2026-08-17 | Specification matchDiscuss this specification |
| CISCO | ONS-XC-10G-C | APT10XDTSYS | 10G multirate tunable DWDM XFP transceiver, full C-band tuning on a 50 GHz ITU grid, 80 km over single-mode fiber, duplex LC. Cisco Pluggable Optical Modules Data Sheet — Tunable DWDM XFPReviewed 2026-08-17 | Specification matchDiscuss this specification |
| JUNIPER | XFP-10G-CBAND-T50-ZR | APT10XDTSYS | 10GbE tunable DWDM XFP transceiver, C-band 50 GHz tuning, 80 km over 9/125 µm single-mode fiber, duplex LC, with digital optical monitoring. Juniper Networks Pathfinder Hardware Compatibility ToolReviewed 2026-08-17 | Specification matchDiscuss this specification |
| EXTREME NETWORKS | 10200 | APT10XDTSYS | 10G tunable DWDM XFP transceiver, C-band channel tuning, 80 km over single-mode fiber, duplex LC. Extreme Networks Pluggable Transceivers Installation Guide — XFP ModulesReviewed 2026-08-17 | Specification matchDiscuss this specification |
Compatibility matching
Compatible with a wide range of major network brands.
Send the host device brand, model and link requirements so we can match an appropriate option.Product datasheets
Review the document for the exact model.
Review the document for the exact model and reach before approving a sample or rollout.
Applications
Review where this product fits the link design.
Confirm the host port, fibre or cable path, distance and operating environment before selecting the final variant.
- Endpoint fitHost device, port role and remote-end interface
- Link fitRate, reach, wavelength, fibre and connector
- Project fitEnvironment, quantity and document requirements
Testing evidence
Request evidence against the exact product scope.
Available evidence depends on the model and agreed review scope. Ask for the checks needed by engineering or procurement before approving a sample or rollout.
- Product identityModel, label, connector and wavelength details
- Host contextCoding or recognition evidence where applicable
- Output evidenceOptical, diagnostic or link information where available
Related questions
Five answers for this product path.
Product selectionWhen is an industrial-temperature option relevant?
Use the equipment and enclosure temperature range as the decision input. Outdoor cabinets, transport and industrial locations may require a wider operating range than a controlled data hall.
Browse productsCompatibility & codingWill DOM or DDM readings be available on the host?
They are available only when the module, interface and host software support the diagnostic functions and expose them correctly. Confirm the required readings as part of the device review.
Start a model reviewOptical link designDo both ends need the same wavelength?
Duplex links normally use matching interface wavelengths at both ends. BiDi and wavelength-division links use planned complementary or channel-specific wavelengths, so the exact link architecture matters.
Use the selection guideHigh-speed deploymentHow do I choose between parallel and duplex high-speed optics?
Compare the host-supported standards, installed fibre, connector, reach and migration plan. Parallel optics often use MPO/MTP; duplex solutions use LC but may have different optical and FEC requirements.
Plan a technical reviewDocuments & procurementHow do I make sure a document applies to my exact model?
Compare the model reference, interface, reach and variant with your product shortlist. If the document is not published or the revision is unclear, send the model and required document type through the document request form before using it for approval.
