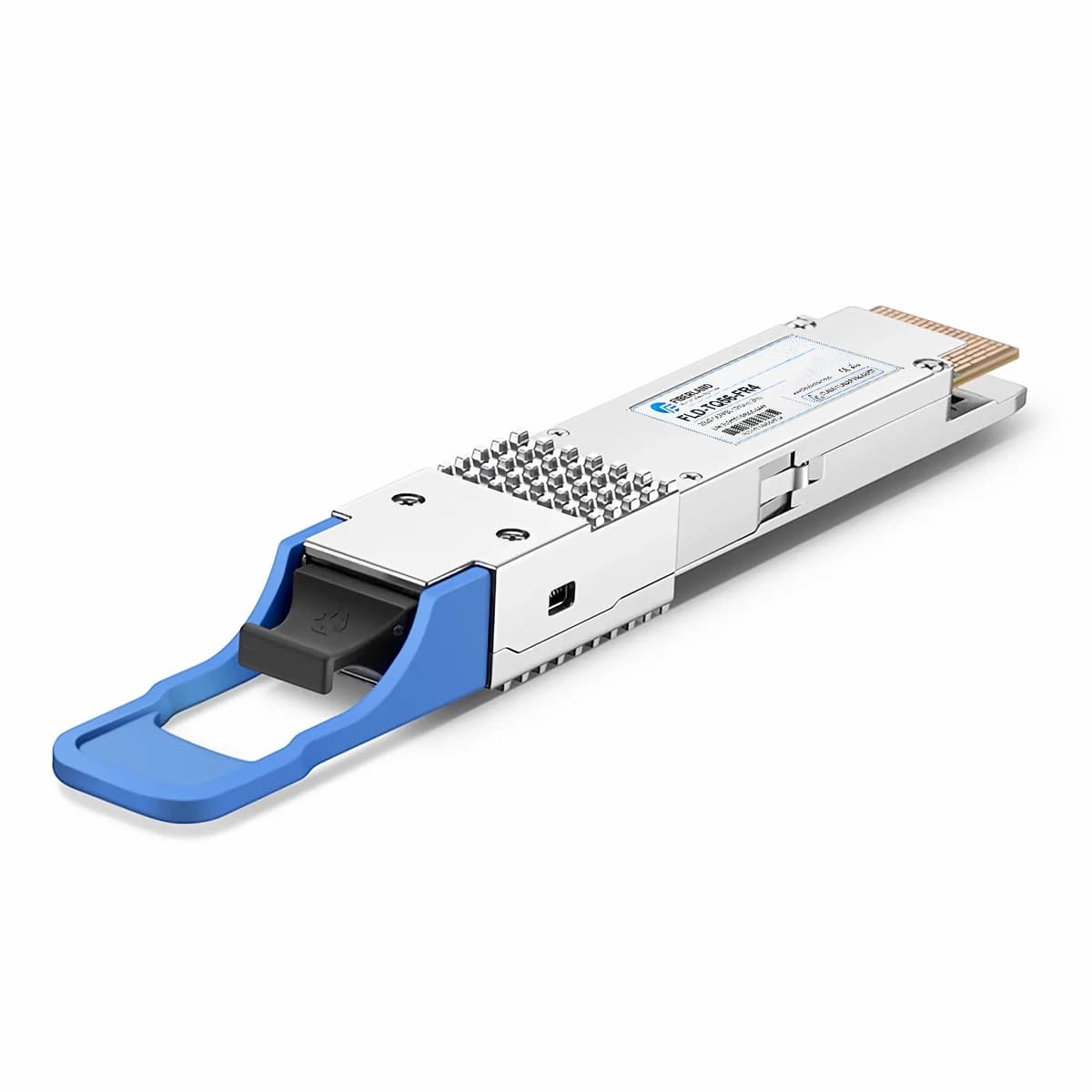

200G QSFP56 FR4 Optical Transceiver, 2km 1310nm Single-Mode, LC, DDM - Compatible QSFP56 Transceiver - Astraphoton
200G QSFP56 1310nm 2km- AstraPhoton model
- APT200Q56FR42K
- Catalogue reference
- TQ56-FR4
- Data rate
- 200G
- Wavelength
- 1310 nm
- Reach
- 2KM
- Form factor
- QSFP56
Key specifications
Original part-number references
These references compare optical specifications. Confirm the host device, firmware and coding profile before deployment.
| Brand | Original part number | Model reference | Optical specification reference | Next step |
|---|---|---|---|---|
| CISCO | QSFP-200G-FR4-S | APT200Q56FR42K | 200GBASE-FR4 QSFP56 transceiver, CWDM 1310 nm band, 2 km over duplex single-mode fiber, LC, with digital diagnostics. Cisco 200G QSFP56 Cables and Transceiver Modules Data SheetReviewed 2026-08-17 | Specification matchDiscuss this specification |
| ARISTA | QSFP-200G-FR4 | APT200Q56FR42K | 200GBASE-FR4 QSFP56 transceiver, CWDM 1310 nm band, 2 km over duplex single-mode fiber, LC, with digital diagnostics. Arista Transceiver and Cable GuideReviewed 2026-08-17 | Specification matchDiscuss this specification |
| SMARTOPTICS | SO-QSFP56-2C-2 | APT200Q56FR42K | 200GBASE-FR4 QSFP56 transceiver, CWDM 1310 nm band, 2 km over duplex single-mode fiber, LC, with digital diagnostics. QSFP56 200G-FR4 Ethernet 13xxnm SM 2km LCReviewed 2026-08-17 | Specification matchDiscuss this specification |
| H3C | QSFP56-200G-FR4-WDM1300 | APT200Q56FR42K | 200GBASE-FR4 QSFP56 transceiver, CWDM 1310 nm band, 2 km over duplex single-mode fiber, LC, with digital diagnostics. H3C S12500R Data Center Switch Transceiver SpecificationsReviewed 2026-08-17 | Specification matchDiscuss this specification |
| HP | R5Z84A | APT200Q56FR42K | 200GBASE-FR4 QSFP56 transceiver, CWDM 1310 nm band, 2 km over duplex single-mode fiber, LC, with digital diagnostics. HPE Networking Transceiver Options QuickSpecsReviewed 2026-08-17 | Specification matchDiscuss this specification |
| NVIDIA | MMS1W50-HM | APT200Q56FR42K | 200GBASE-FR4 QSFP56 transceiver, CWDM 1310 nm band, 2 km over duplex single-mode fiber, LC, with digital diagnostics. MMS1W50-HM 200Gb/s QSFP56 FR4 Transceiver Product SpecificationsReviewed 2026-08-17 | Specification matchDiscuss this specification |
Compatibility matching
Compatible with a wide range of major network brands.
Send the host device brand, model and link requirements so we can match an appropriate option.Product datasheets
Review the document for the exact model.
Review the document for the exact model and reach before approving a sample or rollout.
Applications
Review where this product fits the link design.
Confirm the host port, fibre or cable path, distance and operating environment before selecting the final variant.
- Endpoint fitHost device, port role and remote-end interface
- Link fitRate, reach, wavelength, fibre and connector
- Project fitEnvironment, quantity and document requirements
Testing evidence
Request evidence against the exact product scope.
Available evidence depends on the model and agreed review scope. Ask for the checks needed by engineering or procurement before approving a sample or rollout.
- Product identityModel, label, connector and wavelength details
- Host contextCoding or recognition evidence where applicable
- Output evidenceOptical, diagnostic or link information where available
Related questions
Five answers for this product path.
Product selectionHow can I identify the correct form factor?
Check the device manual and the marking on the existing module or cable. SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP-DD and OSFP are not interchangeable merely because their connectors look similar.
Browse productsCompatibility & codingWill DOM or DDM readings be available on the host?
They are available only when the module, interface and host software support the diagnostic functions and expose them correctly. Confirm the required readings as part of the device review.
Start a model reviewOptical link designDo both ends need the same wavelength?
Duplex links normally use matching interface wavelengths at both ends. BiDi and wavelength-division links use planned complementary or channel-specific wavelengths, so the exact link architecture matters.
Use the selection guideHigh-speed deploymentHow should I compare QSFP-DD and OSFP for 400G?
Start with the host port and supported interface list. The form factors have different mechanical and thermal characteristics and should not be treated as direct substitutes without device support.
Plan a technical reviewDocuments & procurementHow do I make sure a document applies to my exact model?
Compare the model reference, interface, reach and variant with your product shortlist. If the document is not published or the revision is unclear, send the model and required document type through the document request form before using it for approval.
