MTP/MPO TRUNK CABLE

MTP/MPO TRUNK CABLE FOR HIGH-DENSITY DATA CENTRE BACKBONE AND PARALLEL-OPTICS CABLING.
Configuration
CONFIGURED TO ORDER
Request a quoteCheck compatibility

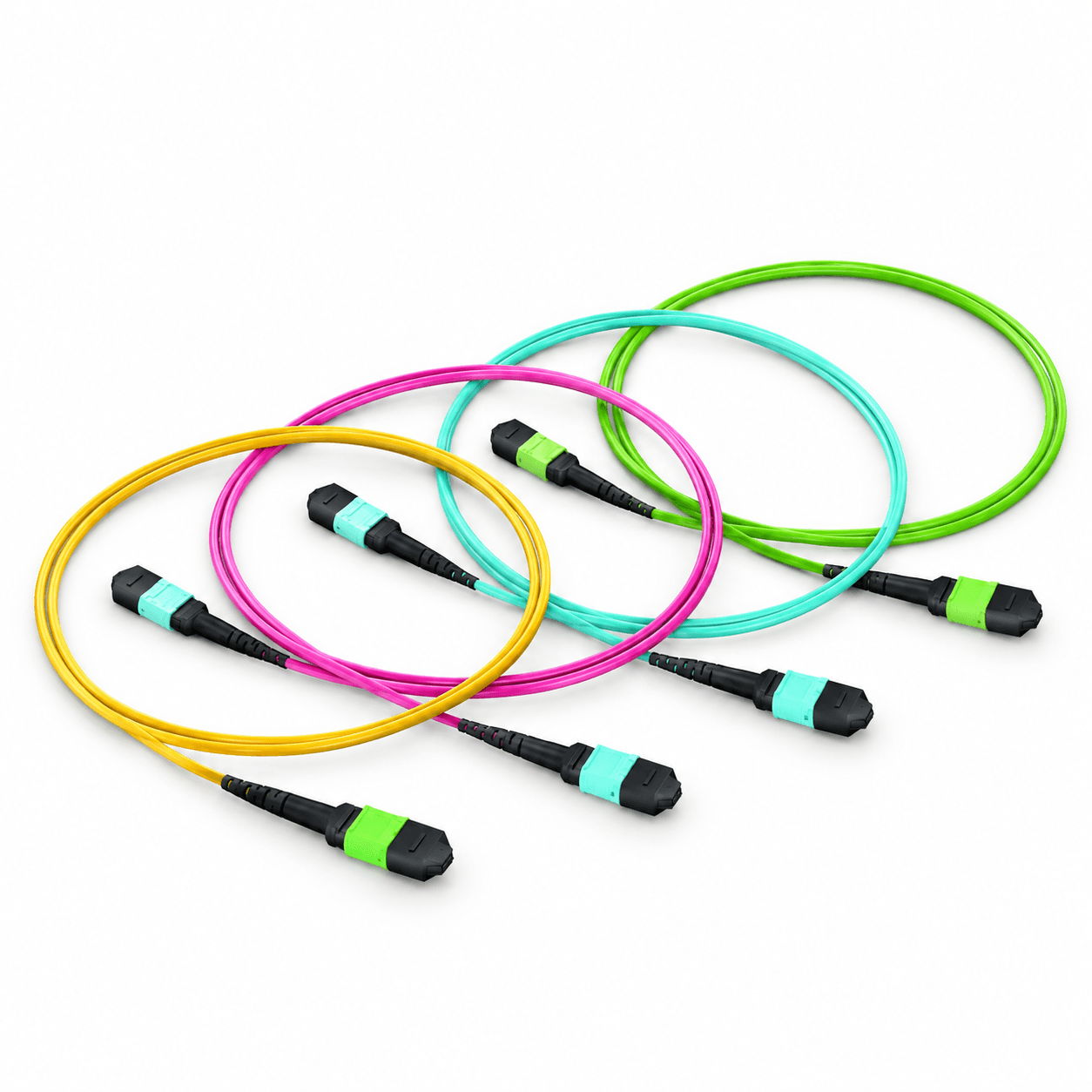

MTP MPO trunk cable product family
ConfigurationCONFIGURED TO ORDER
CategoryFibre Patch Cords
Decision pathSpecifications + host + evidence

Key specifications

Fibre count8–144 fibres
Fibre modesOS2 / OM3 / OM4 / OM5
Connector optionsMTP / MPO male or female
Polarity optionsType A / Type B / Type C
Cable jacketOFNP / LSZH / PVC
Single-cable diameter3.0 mm
Minimum bend radiusSingle-mode 10.0 mm; multimode 7.5 mm
Operating temperature-10°C to +70°C
Storage temperature-40°C to +85°C

Available models

Compare model specifications

1 model

Swipe horizontally to see all columns.

Configuration referenceTypeRateMediaWavelengthReachConnectorOptions
MTP-MPO-TRUNKMulti-fibre trunk cable10G / 40G / 100G design pathsOS2 / OM3 / OM4 / OM5850 / 1310 / 1550 nm as applicableSelected by fibre grade and interfaceMTP or MPO, male or femalePolarity A / B / C; OFNP / LSZH / PVC jacket

Buyer guidance

Fibre countConfigure 8 to 144 fibres around the panel, cassette and transceiver architecture.
PolarityConfirm Type A, Type B or Type C and the male/female pin arrangement before ordering.
InstallationOptional pulling eyes can protect connector ends during route installation.

Compatibility matching

Compatible with a wide range of major network brands.

Send the host device brand, model and link requirements so we can match an appropriate option.
Send your device model

Applications

Review where this product fits the link design.

Confirm the host port, fibre or cable path, distance and operating environment before selecting the final variant.

  • Data centre backboneHigh-fibre-count links between main, horizontal and zone distribution areas.
  • Parallel opticsMTP/MPO links selected for the transceiver, cassette or panel interface.
  • Migration planningStructured cabling paths supporting staged 10G, 40G and 100G deployment.

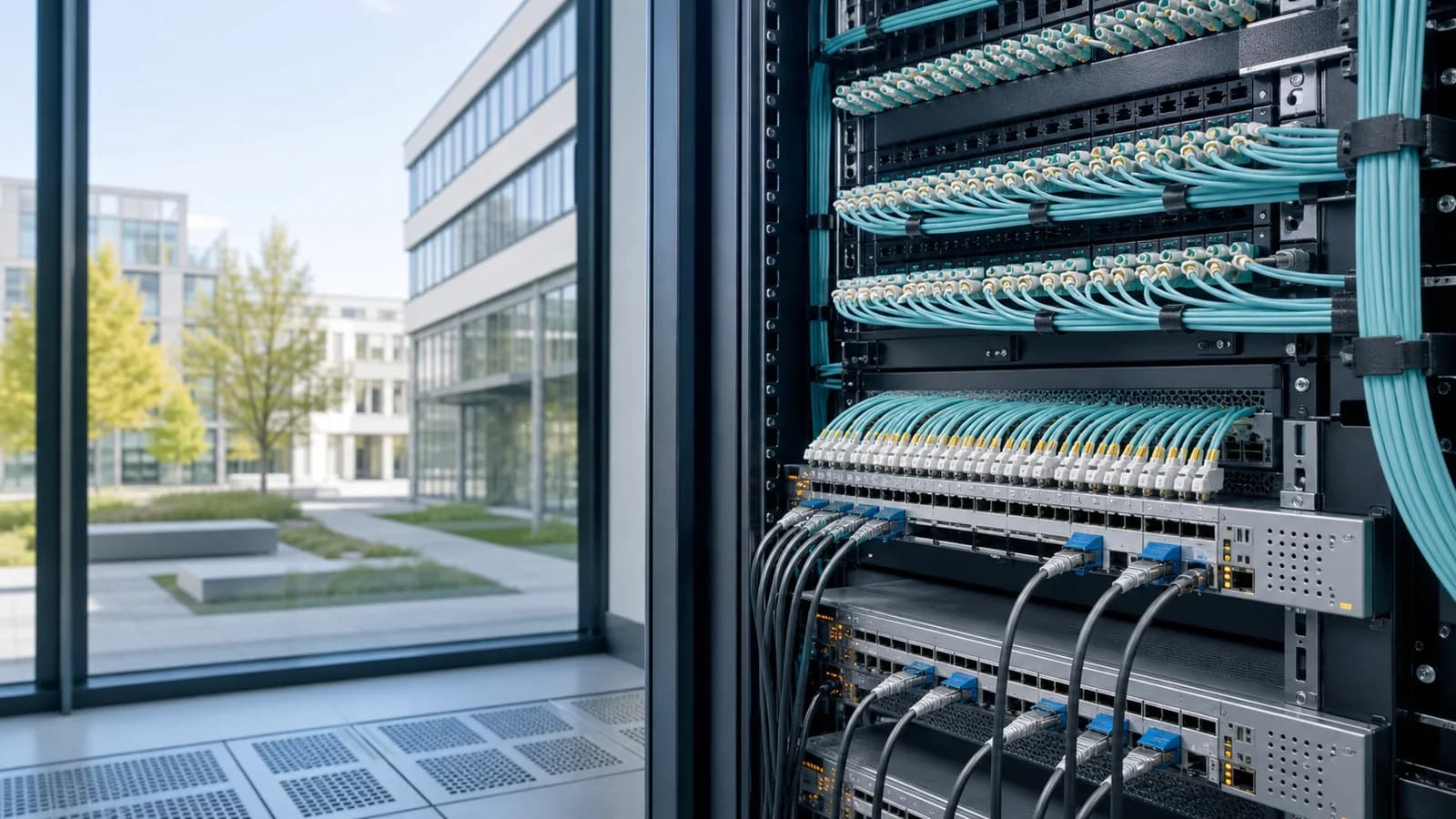

Illustration of an optical network application path
Illustrated checklist for optical link testing and output review

Testing evidence

Request evidence against the exact product scope.

Available evidence depends on the model and agreed review scope. Ask for the checks needed by engineering or procurement before approving a sample or rollout.

  • Product identityModel, label, connector and wavelength details
  • Host contextCoding or recognition evidence where applicable
  • Output evidenceOptical, diagnostic or link information where available
Request testing evidence

Product datasheets

Review the document for the exact model.

Review the document for the exact model and reach before approving a sample or rollout.

Request the current datasheet

Related questions

Five answers for this product path.

View all 52 answers
Product selectionHow do I confirm the connector requirement?

Check the module receptacle and the existing cabling plan. Duplex LC, simplex LC, MPO/MTP and copper interfaces require different patching and polarity arrangements, so the connector should be confirmed before quotation.

Browse products
Compatibility & codingCan a module be recognised but still fail to link?

Yes. Host recognition and optical link operation are separate checks. Fibre type, wavelength, polarity, loss, remote-end optics, speed, lane mode and FEC can prevent a link even when the module is recognised.

Start a model review
Optical link designWhy does fibre polarity matter?

Transmit at one end must reach receive at the other. Duplex LC and parallel-optic MPO/MTP links have different polarity rules; verify patch leads, cassettes and trunk polarity as one system.

Use the selection guide
High-speed deploymentHow do I choose between parallel and duplex high-speed optics?

Compare the host-supported standards, installed fibre, connector, reach and migration plan. Parallel optics often use MPO/MTP; duplex solutions use LC but may have different optical and FEC requirements.

Plan a technical review
Documents & procurementWhat should be checked on a quotation?

Confirm the product code, variant, quantity, compatibility scope, document requirements, delivery basis, price validity and any sample or acceptance conditions before placing an order.

Request a document pack

Next steps

Move from product record to a scoped decision.

Request a quoteConfirm price, quantity, destination and the required commercial pack.Request a sampleEvaluate representative hardware and link conditions before a wider rollout.Request technical reviewSend the device, firmware, port role and link design for engineering review.
