10G SFP+ DWDM Optical Transceiver, 80km CH17–CH61 Channel Options Single-Mode, Duplex LC, DDM - Compatible SFP+ DWDM Transceiver - AstraPhoton

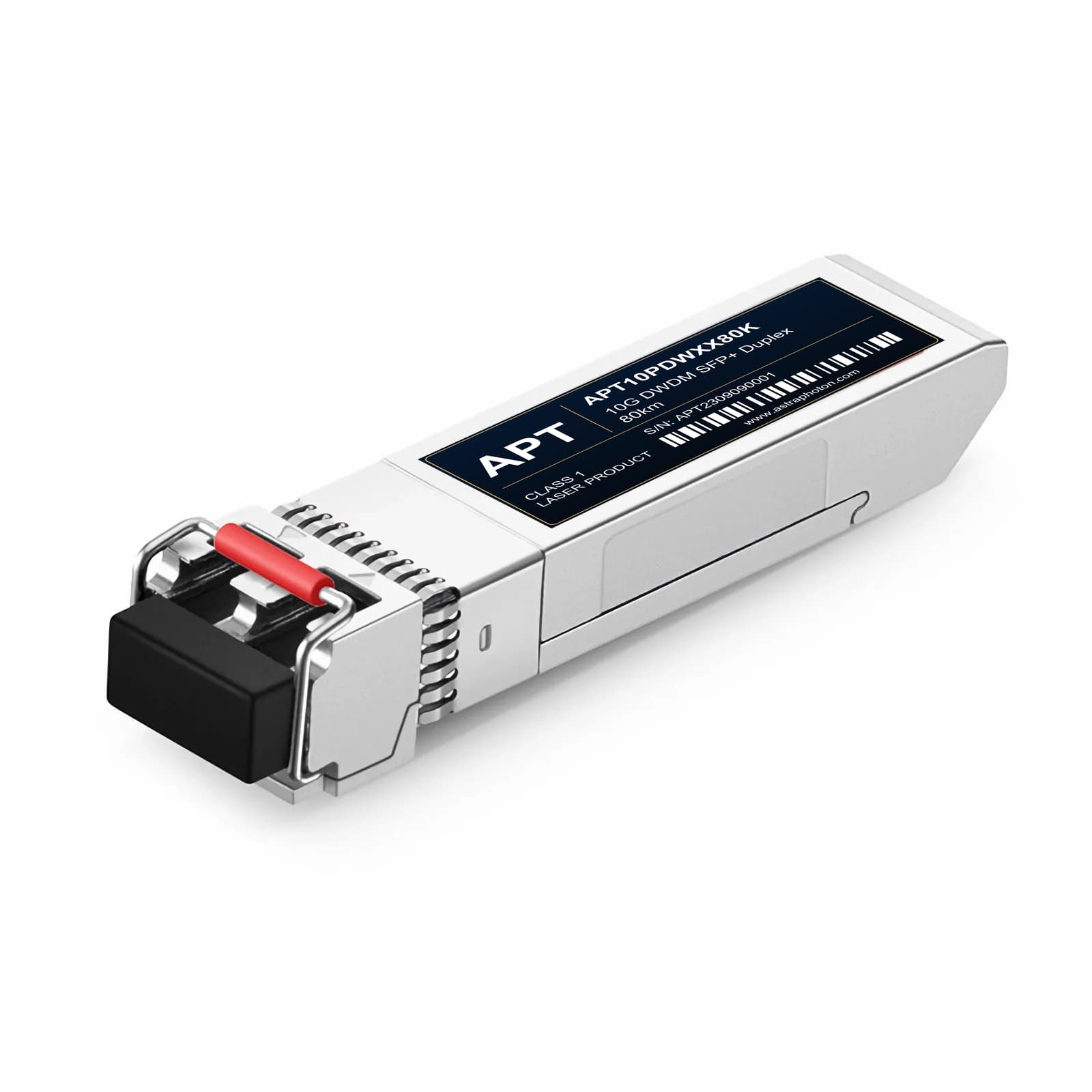

10G DWDM SFP+ Duplex 80km- AstraPhoton model
- APT10PDWXX80K
- Catalogue reference
- APT10PDWXX80K
- Data rate
- 10G
- Wavelength
- CH17~CH61
- Reach
- 80KM
- Form factor
- DWDM SFP+
Key specifications
Compatibility matching
Compatible with a wide range of major network brands.
Send the host device brand, model and link requirements so we can match an appropriate option.Applications
Review where this product fits the link design.
Confirm the host port, fibre or cable path, distance and operating environment before selecting the final variant.
- Endpoint fitHost device, port role and remote-end interface
- Link fitRate, reach, wavelength, fibre and connector
- Project fitEnvironment, quantity and document requirements
Testing evidence
Request evidence against the exact product scope.
Available evidence depends on the model and agreed review scope. Ask for the checks needed by engineering or procurement before approving a sample or rollout.
- Product identityModel, label, connector and wavelength details
- Host contextCoding or recognition evidence where applicable
- Output evidenceOptical, diagnostic or link information where available
Product datasheets
Review the document for the exact model.
Review the document for the exact model and reach before approving a sample or rollout.
Download APT10PDWXX80K specification (PDF)Related questions
Five answers for this product path.
Product selectionWhat is needed to select a CWDM or DWDM channel?
Provide the channel plan or exact wavelength, link distance, mux or filter specification, connector and host platform. A channel number without its wavelength reference may be ambiguous.
Browse productsCompatibility & codingWill DOM or DDM readings be available on the host?
They are available only when the module, interface and host software support the diagnostic functions and expose them correctly. Confirm the required readings as part of the device review.
Start a model reviewOptical link designDo both ends need the same wavelength?
Duplex links normally use matching interface wavelengths at both ends. BiDi and wavelength-division links use planned complementary or channel-specific wavelengths, so the exact link architecture matters.
Use the selection guideHigh-speed deploymentHow do I choose between parallel and duplex high-speed optics?
Compare the host-supported standards, installed fibre, connector, reach and migration plan. Parallel optics often use MPO/MTP; duplex solutions use LC but may have different optical and FEC requirements.
Plan a technical reviewDocuments & procurementHow do I make sure a document applies to my exact model?
Compare the model reference, interface, reach and variant with your product shortlist. If the document is not published or the revision is unclear, send the model and required document type through the document request form before using it for approval.
Request a document pack
