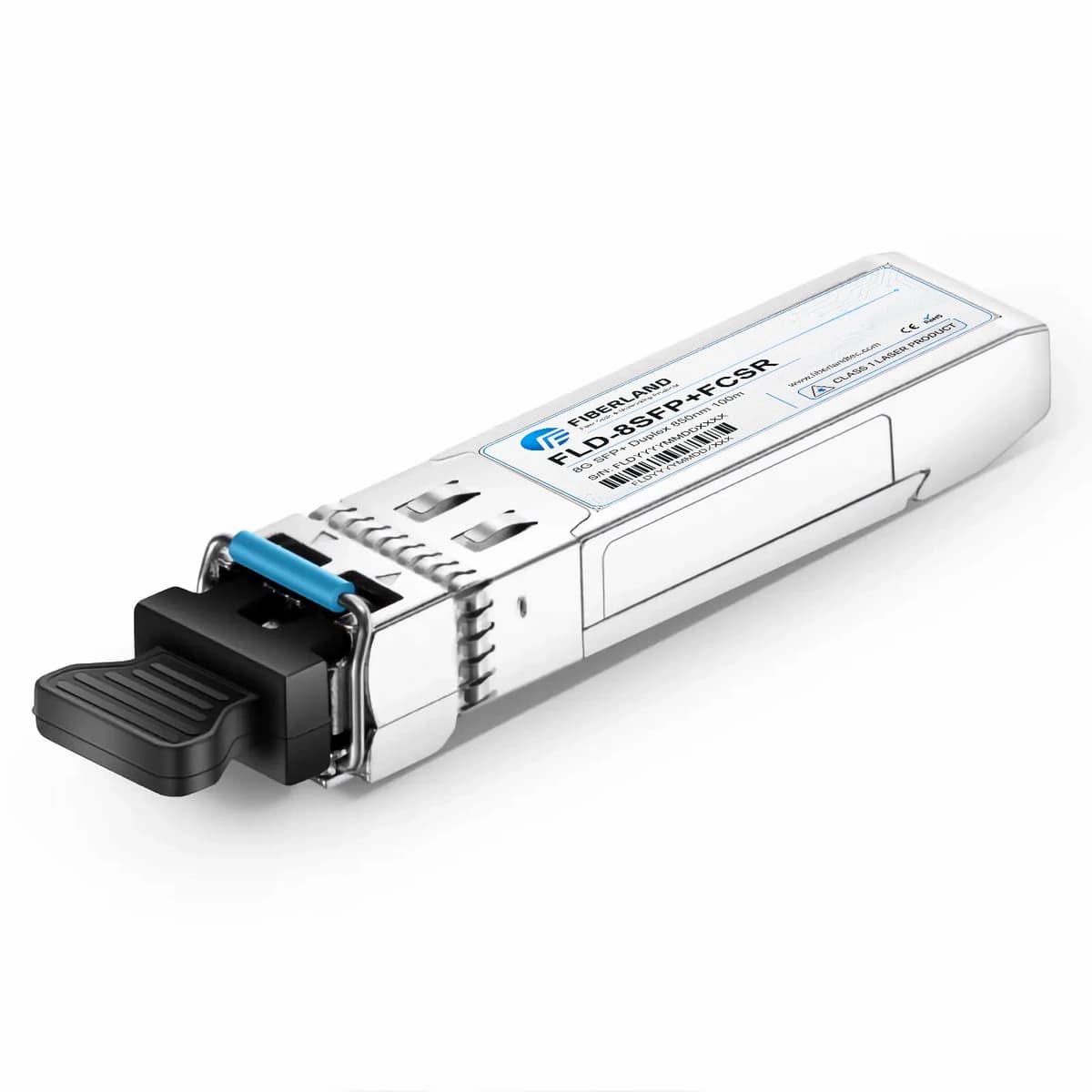

8G SFP+ FCSR Fibre Channel Optical Transceiver, 100m 850nm Multimode, Duplex LC, DDM - Compatible SFP+ Fiber Channel Transceiver - Astraphoton
8G SFP+ Duplex 850nm 100m- AstraPhoton model
- APT8PFCSR100M
- Catalogue reference
- 8SFP+FCSR
- Data rate
- 8G
- Wavelength
- 850 nm
- Reach
- 100M
- Form factor
- DUPLEX SFP+
Key specifications
Compatibility matching
Compatible with a wide range of major network brands.
Send the host device brand, model and link requirements so we can match an appropriate option.Product datasheets
Review the document for the exact model.
Review the document for the exact model and reach before approving a sample or rollout.
Applications
Review where this product fits the link design.
Confirm the host port, fibre or cable path, distance and operating environment before selecting the final variant.
- Endpoint fitHost device, port role and remote-end interface
- Link fitRate, reach, wavelength, fibre and connector
- Project fitEnvironment, quantity and document requirements
Testing evidence
Request evidence against the exact product scope.
Available evidence depends on the model and agreed review scope. Ask for the checks needed by engineering or procurement before approving a sample or rollout.
- Product identityModel, label, connector and wavelength details
- Host contextCoding or recognition evidence where applicable
- Output evidenceOptical, diagnostic or link information where available
Related questions
Five answers for this product path.
Product selectionWhen should I choose single-mode or multimode optics?
Match the installed fibre and the interface standard at both ends. Multimode is common for shorter data-centre links; single-mode supports many campus, metro and long-reach links. Do not mix the two without a specifically designed conversion path.
Browse productsCompatibility & codingWill DOM or DDM readings be available on the host?
They are available only when the module, interface and host software support the diagnostic functions and expose them correctly. Confirm the required readings as part of the device review.
Start a model reviewOptical link designCan temperature influence optical margin?
Optical output, receiver performance and fibre or connector conditions can vary with environment. Use the specified operating range and retain reasonable link margin for the deployment.
Use the selection guideHigh-speed deploymentHow do I choose between parallel and duplex high-speed optics?
Compare the host-supported standards, installed fibre, connector, reach and migration plan. Parallel optics often use MPO/MTP; duplex solutions use LC but may have different optical and FEC requirements.
Plan a technical reviewDocuments & procurementHow do I make sure a document applies to my exact model?
Compare the model reference, interface, reach and variant with your product shortlist. If the document is not published or the revision is unclear, send the model and required document type through the document request form before using it for approval.
