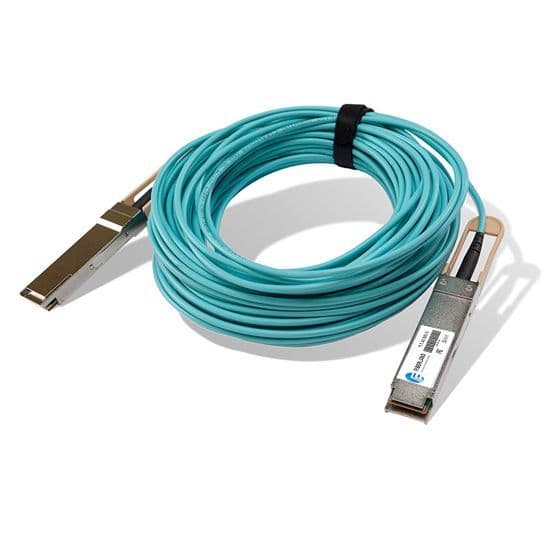

QSFP+ 40G AOC, QSFP+ TO QSFP+ Active Optical Cable - Astra Photon

Name: QSFP+ 40G AOC, QSFP+ TO QSFP+ Active Optical Cable - Astra Photon
Brand: Astra Photon
SKU: AP-40GA-QS2QS-1

Multi vendor compatible 40G QSFP+ AOC for 40G data center ethernet application.CE, FCC, ROHS certified.Up to 100 meters.Fast shipping.Global delivery.

Product codeAP-40GA-QS2QS-1

CategoryActive Optical Cables

Document pathDatasheet + compatibility review

Key specifications

Vendor NameAstra Photon

Form Type40G QSFP+ AOC

Data Rate40Gbps

Wavelength850NM

Reach1~100M

Optical InterfaceN/A

Media TypeMM

DDM SupportYES

Commercial Temp.0~70℃

Industrial Temp.-40~85℃

Compatible BrandsCisco,HP,Huawei,etc...

CertificatesCE,FCC,ROHS,REACH

HS Code8517706000

Warranty3 Years

Buyer guidance

Full duplex 4 channel 850nm parallel active optical cable

Up to 11.1Gbps Data rate per channel

Maximum link length of 100m links on OM3 multimode fiber

High Reliability 850nm VCSEL technology

Electrically hot-pluggable

Case operating temperature range:0°C to 70°C

Power dissipation < 1.5 W per cable end

Compliant with CE,FCC,Rohs,REACH
