Product

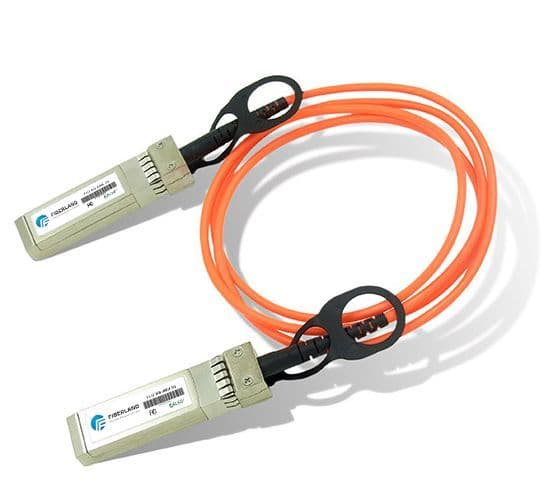

10G AOC, 10G SFP+ AOC, 40G QSFP+ AOC, 100G QSFP28 AOC - Astra Photon
10G AOC cable, 40G QSFP+ AOC, 100G QSFP28 AOC now is widely used in high speed data center application for short distance transmission.
Product codeAP-10GA-S2S-1
CategoryActive Optical Cables
Document pathDatasheet + compatibility review
Key specifications
Vendor NameAstra Photon
Form TypeSFP+ AOC
Data Rate10Gbps
Wavelength850NM
Reach1~100M
Optical InterfaceN/A
Media TypeMM
DDM SupportYES
Commercial Temp.0~70℃
Industrial Temp.-40~85℃
Compatible BrandsCisco,HP,Huawei,etc...
CertificatesCE,FCC,ROHS,REACH
HS Code8517706000
Warranty3 Years
Buyer guidance
Up to 11.1Gbps Data rate per channel
Maximum link length of 100m links on MMF
High Reliability 850nm VCSEL technology
Electrically hot-pluggable
Electrical interface compliant to SFF-8431
Case operating temperature range:0°C to 70°C
Power dissipation < 1.0W per cable end
Compliant to SFF-8431
