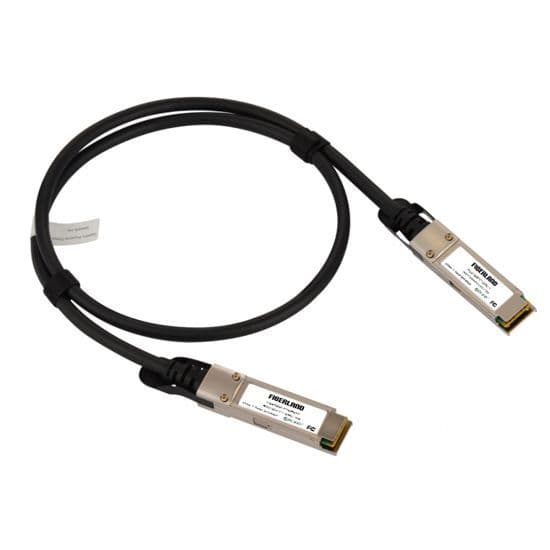

40G QSFP+ DAC Cable, 40G Passive copper DAC - Astra Photon
The most perfect and cost effective solution for short distance data transmission in the application of Data center.10G DAC, 40G DAC, 100G DAC save your cost.
Product codeAP-40GD-QS2QS-0.5
CategoryDirect Attach Cables
Document pathDatasheet + compatibility review
Key specifications
Vendor NameAstra Photon
Form TypeQSFP+ DAC
Data Rate40Gbps
WavelengthN/A
Reach0.5m~15m
Optical InterfaceN/A
Media TypeN/A
DDM SupportYES
Commercial Temp.0~70℃
Industrial Temp.-40~85℃
Compatible BrandsCisco,HP,Huawei,etc...
CertificatesCE,FCC,ROHS,REACH
HS Code8517706000
Warranty3 Years
Buyer guidance
QSFP+ conforms to the Small Form Factor SFF8436
4-Channel Full-Duplex Passive/Active Copper Cable Transceiver
Support for multi-gigabit data rates :1Gb/s - 10Gb/s (per channel)
Maximum aggregate data rate: 40Gb/s (4 x 10Gb/s)
Copper link length up to 15m (active limiting)
High-Density QSFP 38-PIN Connector
Power Supply :+3.3V
Power Consumption: <0.8W
